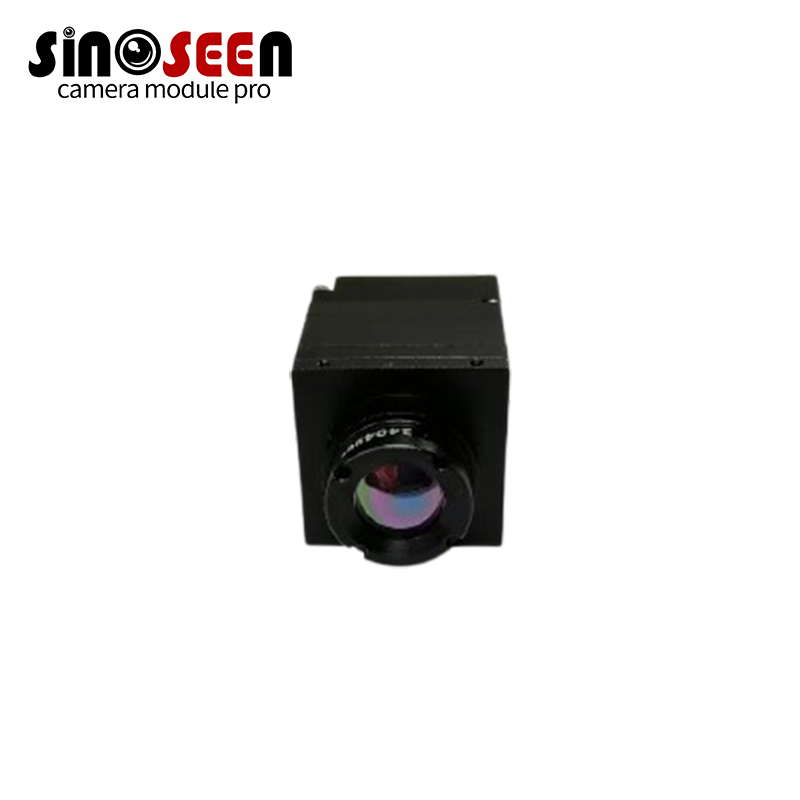

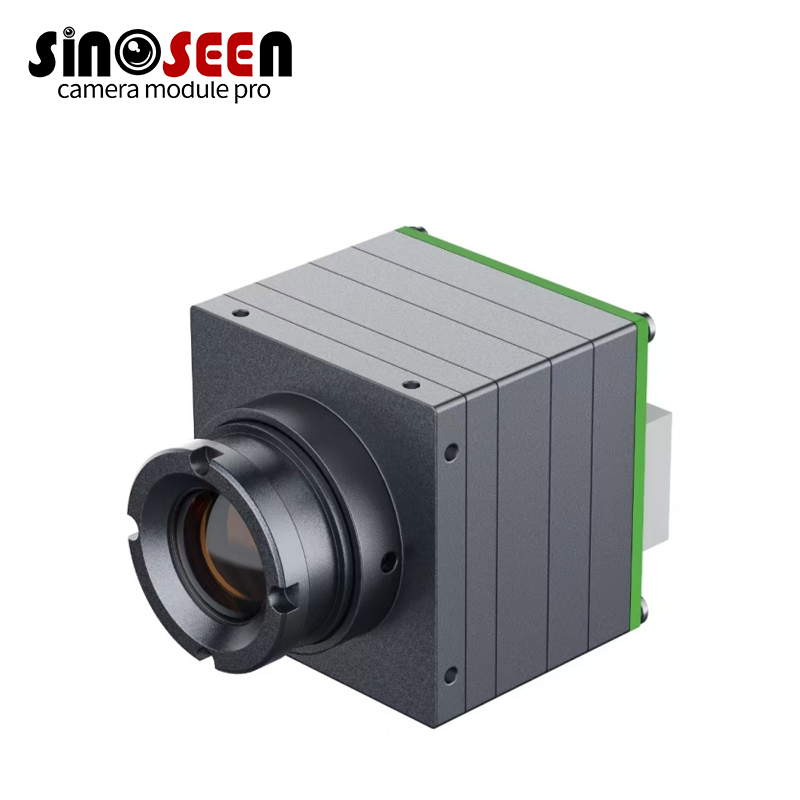

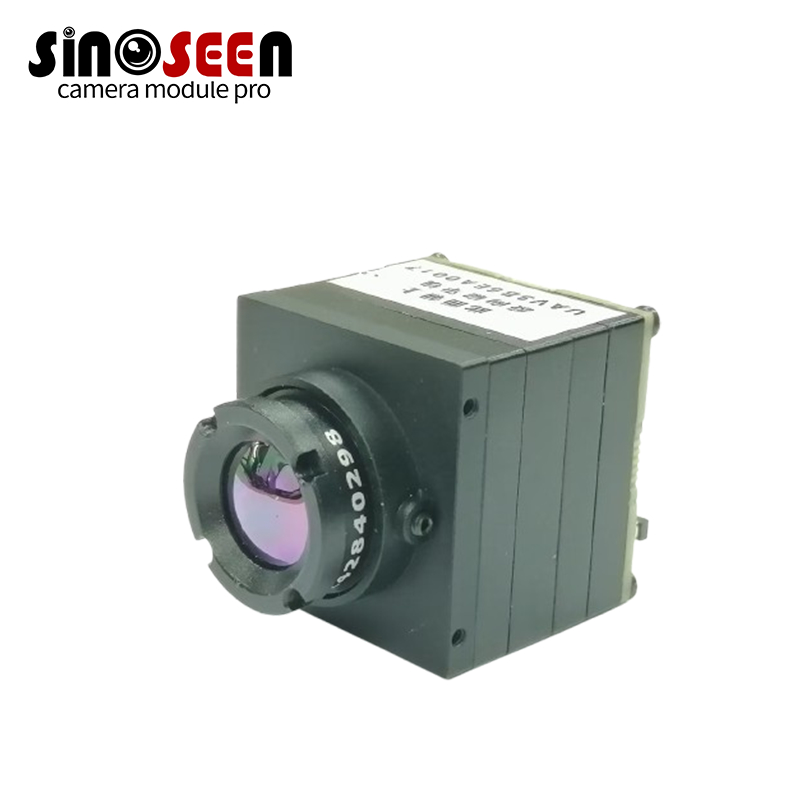

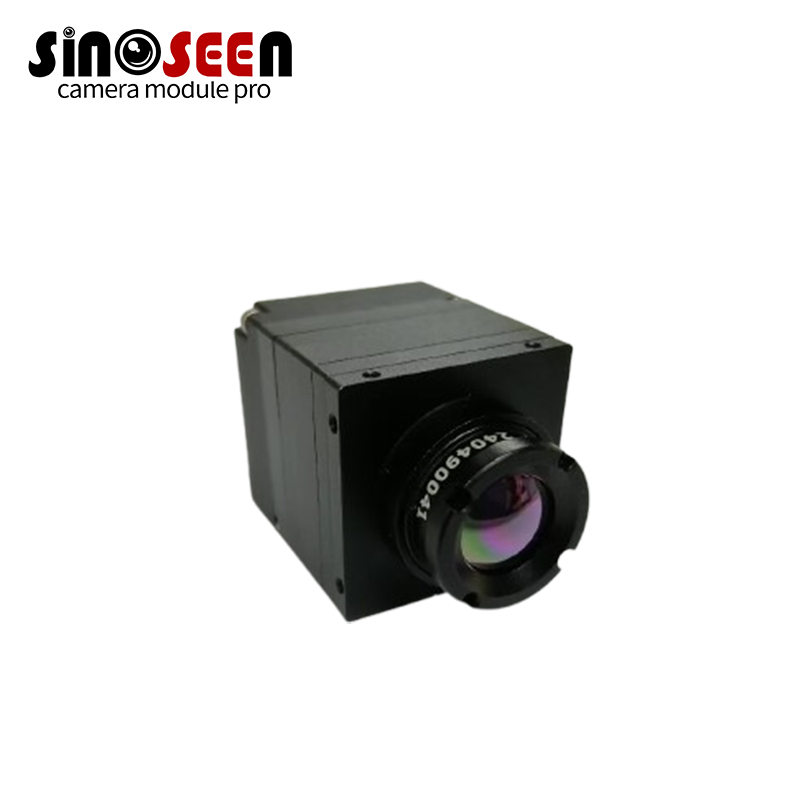

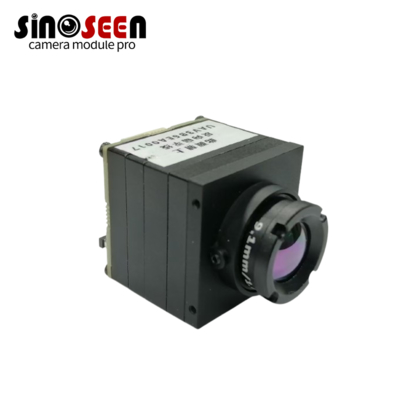

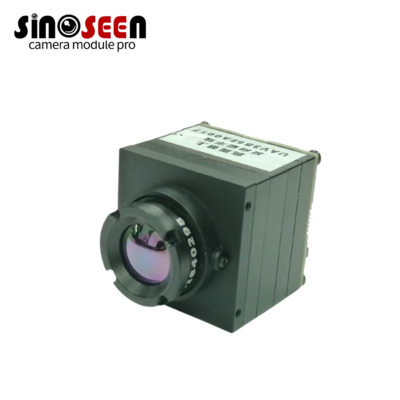

384x288 VOx Thermal Imaging Module for Embedded Systems
Λεπτομέρειες:
| Place of Origin: | china |
| Μάρκα: | sinoseen |
| Πιστοποίηση: | ce,iso,rohs |
| Model Number: | XLS-thermal-384 |
Πληρωμής & Αποστολής Όροι:
| Minimum Order Quantity: | 3 |
|---|---|
| Τιμή: | διαπραγματεύσιμα |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Λεπτομερής ενημέρωση |
|||
| Επισημαίνω: | VOx thermal imaging module,384x512 thermal camera module,embedded thermal imaging sensor |
||
|---|---|---|---|
Περιγραφή προϊόντων
Next-Gen 384x288 Thermal Imaging Core - Precision and Performance Redefined
Unlock the potential of thermal imaging with our compact, ultra-sensitive uncooled core. Designed with a high-resolution 384x288 VOx sensor and enhanced with intelligent image processing, this module brings real-time thermal accuracy into compact embedded systems.
Operating at ≤1W, this module is ideal for energy-constrained applications without compromising performance. Whether applied in autonomous systems, AI vision platforms, or safety monitoring solutions, its capabilities provide outstanding thermal fidelity in challenging environments.
Highlights:
- Enhanced thermal clarity with ≤40mK NETD
- High-speed frame rate for smooth imaging
- Real-time polarity & color control
- Lightweight and integration-ready (≤23g)
- Shock and vibration resistant for industrial-grade use
| IR Detector | Resolution | 384x288 |
|---|---|---|
| Spectral range | 8~14μm | |
| Detector type | VOx | |
| Pixth pitch | 12μm | |
| NETD | ≤40mK | |
| Lens | 9.1mm | |
| Frame rate | ≤50Hz | |
| Image adjustment | Bright or Contrast adjustment | Auto or manual |
| Polarity | White Hot or Black Hot | |
| Color palettes | Iron, Iron invert, Rainbow,Feather | |
| E-zoom | X1,X2,X4 | |
| Image processing | NUC,digital filter noise reduction, digital details enhanced | |
| Image mirror | Left and right , Up and down | |
| Power | Overcurrent protection, overvoltage protection, reverse input protection | |
| Power input | DC 5~12V | |
| Power consumption | ≤ 1W | |
| Video output | CVBS | |
| Communication port | RS232 | |
| Operating Temperature | -20℃~+60℃ | |
| Storage Temperature | -45℃~+85℃ | |
| Humidity | 5～95%, non-condensing | |
| Vibration | 6.06g,all axial for random vibration | |
| Shock | 40g,4ms,rear peak sawtooth wave at 3 axes of 6 directions | |
| Dimension | 26×26×21.1mm(without lens and connectors) | |
| Weight | ≤23g(without lens and connectors) |
Customization Services Available We offer full customization: housing design, firmware tuning, image tuning, and interface support to meet your exact application.
About Sinoseen Sinoseen Technology specializes in OEM/ODM camera modules, serving clients globally across automotive, aerospace, and industrial sectors. We turn your vision into high-performance imaging hardware.
Contact Us Explore integration possibilities with us. contact andy@sinoseen.com for thermal module solutions.
