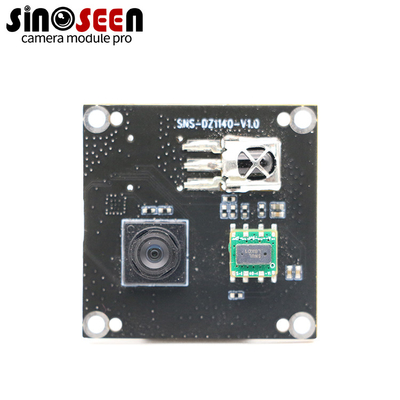

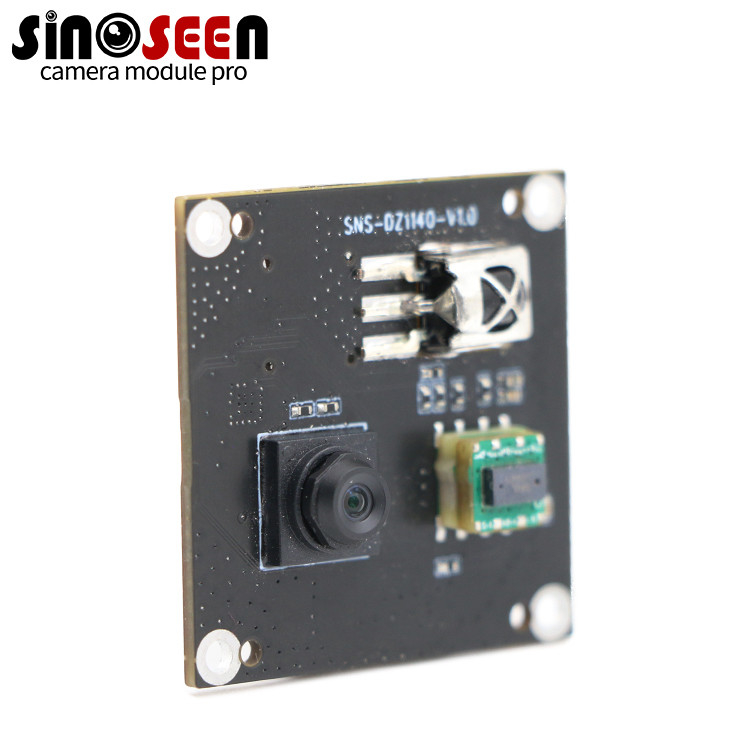

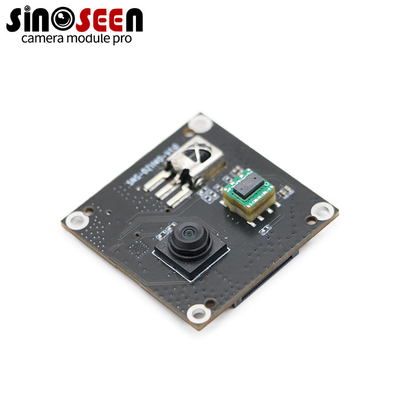

Smooth 30 Frames per Second Video Capture Sinoseen BF20A6 USB Camera Module for Video Conference Phones
Λεπτομέρειες:
| Τόπος καταγωγής: | Σενζέν, Κίνα |
| Μάρκα: | Sinoseen |
| Πιστοποίηση: | RoHS |
| Αριθμό μοντέλου: | ΣΝΣ-DZ1140-V1.0 |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 3 |
|---|---|
| Τιμή: | διαπραγματεύσιμα |
| Συσκευασία λεπτομέρειες: | Τραπέζι+Αντιστατική σακούλα σε κουτί από χαρτόνι |
| Χρόνος παράδοσης: | 2-3 εβδομάδες |
| Όροι πληρωμής: | Τ/Τ |
| Δυνατότητα προσφοράς: | 500000 κομμάτια/μήνας |
|
Λεπτομερής ενημέρωση |
|||
| Τύπος: | Μονάδα κάμερας USB | Αισθητήρας: | BF20A6 1/10 ίντσες |
|---|---|---|---|
| Ανάλυση: | 30W 640*480 | Διαστάσεις: | Προσαρμόσιμη |
| Ποσοστό καρέ: | 30fps | FOV φακών: | 51° |
| Διασύνδεση: | USB | ||
Περιγραφή προϊόντων
| Attribute | Value |
|---|---|
| Type | USB Camera Module |
| Sensor | BF20A6 1/10 inch |
| Resolution | 30W 640*480 |
| Dimensions | Customizable |
| Frame Rate | 30FPS |
| Lens FOV | 51° |
| Interface | USB |
Still searching for a camera module that balances high-quality video, compact design, and cost-effectiveness for your video conference phone equipment? The Sinoseen SNS-DZ1140-V1.0 Camera Module is your ideal choice!
It features a BF20A6 1/10-inch CMOS image sensor, delivering 640x480 resolution and smooth 30 frames per second video capture capabilities, ensuring your conference calls are clear and stable, eliminating the pain points of traditional devices with choppy or blurry footage.
This module utilizes a fixed-focus lens, simplifying the design and removing the need for complex autofocus mechanisms, significantly reducing costs and enhancing reliability. Its USB interface makes integration with various video conferencing systems and devices exceptionally easy, truly offering plug-and-play functionality and saving your development time.
The BF20A6 sensor also boasts good low-light performance and sensitivity, ensuring clear images under various lighting conditions. Meanwhile, its ultra-low 30W power consumption makes it an energy-efficient and eco-friendly solution. Choose the Sinoseen SNS-DZ1140-V1.0 to bring a high-quality, high-efficiency, and easy-to-integrate visual solution to your video conference devices!
| Module | SNS-DZ1140-V1.0 |
| Sensor | BF20A6 CMOS |
| Image sensor size | 1/10 inch |
| Pixel | 30W |
| Most effective pixels | 640*480 |
| Pixel Size | 2.25um*2.25um |
| Frame rate | 30fps |
| Optical distortion | <=15.5% |
| Image sensor Data output | RAW Data 10bits |
| Focus type | Fixed focus |
| Output interface | USB2.0 |
| Video output | YUV |
| Output formats | RAW Bayer 10bits |
| Max S/N ratio | TBD |
| Dynamic | TBD |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
