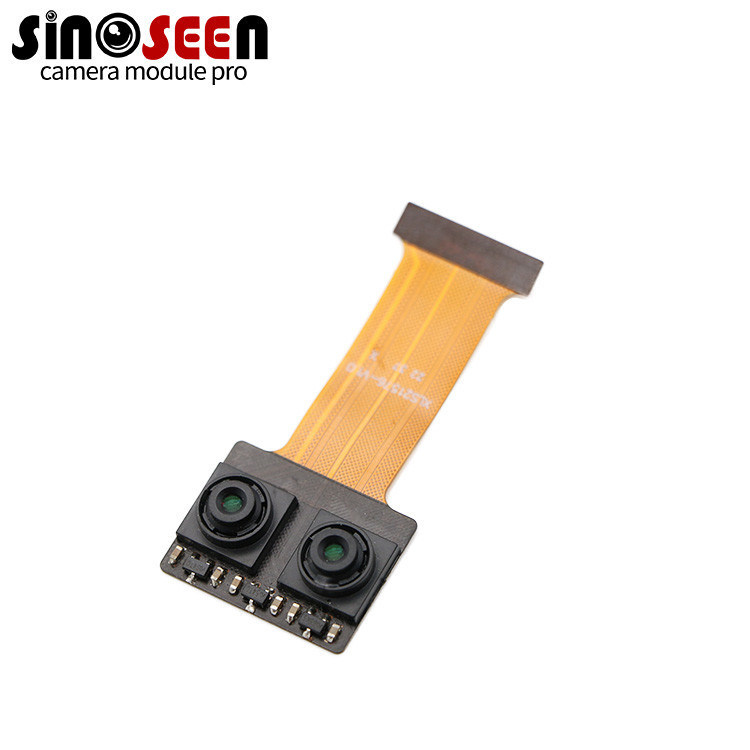

2MP Dual Spectrum MIPI Camera Module with IR850 and RGB Filters for Enhanced Vision and Accurate Color Imaging
Λεπτομέρειες:
| Τόπος καταγωγής: | Shenzhen, Κίνα |
| Μάρκα: | Sinoseen |
| Πιστοποίηση: | RoHS |
| Αριθμό μοντέλου: | SNS21576-V1.0 |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 3 |
|---|---|
| Τιμή: | 10-100USD、negotiable |
| Συσκευασία λεπτομέρειες: | Δίσκος+Αντιστατική σακούλα σε χαρτοκιβώτιο |
| Χρόνος παράδοσης: | 2-3 εβδομαδες |
| Όροι πληρωμής: | T/T |
| Δυνατότητα προσφοράς: | 500000 τεμάχια/μήνα |
|
Λεπτομερής ενημέρωση |
|||
| Τύπος: | Μονάδα κάμερας 2MP | Αισθητήρας: | Αισθητήρας SC2310 |
|---|---|---|---|
| Ψήφισμα: | H1920*V1080 | Διαστάσεις: | (προσαρμόσιμο) |
| Μέγεθος pixel: | 3.0um x3.0um | Τύπος εστίασης: | Διορθώθηκε η εστίαση |
| Διασύνδεση: | Mipi | Χαρακτηριστικό: | HD |
| Επισημαίνω: | 2MP MIPI camera module with IR850,dual spectrum camera module for color imaging,MIPI camera module with RGB filters |
||
Περιγραφή προϊόντων
2MP Dual Spectrum MIPI Camera Module with IR850 and RGB Filters
Enhanced Vision and Accurate Color Imaging
The 2MP Dual Spectrum MIPI Camera Module integrates two advanced image sensors—each optimized for different light wavelengths. One sensor, paired with an IR850 infrared filter, captures invisible infrared light for clear night and low-light imaging. The second sensor, equipped with an RGB color filter, delivers accurate color reproduction and fine visual detail under normal lighting.
This dual-lens setup allows simultaneous capture of visible and infrared images, enabling real-time comparison or fusion of both data streams. Such capability enhances object recognition accuracy in machine vision, industrial inspection, and AI-based image analysis. The module's 1920*1080 resolution and 3.0 μm pixel size ensure crisp, low-noise image quality across various lighting conditions.
With its MIPI CSI-2 interface, the module integrates smoothly with embedded platforms, robotics systems, and SBCs like Raspberry Pi and NVIDIA Jetson. It supports essential auto functions including Auto Exposure (AEC), Auto White Balance (AEB), and Auto Gain Control (AGC) for consistent imaging performance.
Key Features
- Dual-lens design for visible and infrared light capture
- IR850 filter improves night vision and low-light performance
- RGB filter delivers vivid, natural color rendering
- 2MP SC2310 CMOS sensor ensures clear, detailed imaging
- MIPI interface for high-speed data transmission and system integration
Technical Specifications
| Model No | SNS21576-V1.0 |
|---|---|
| Sensor | SC2310 sensor |
| Pixel | 2 Mega Pixel |
| Most effective pixels | H1920*V1080 |
| Pixel Size | 3.0um x3.0um |
| Image Area | 5808µm x 3288µm |
| Compression format | YUV2 / MJPG |
| Shutter Type | Electronic rolling shutter |
| Focus type | Fixed focus |
| Sensitivity | 3700 mV/lux-sec |
| Interface type | mipi |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
| Power supply requirement | AVDD28: 2.7~3.3V(Typ.2.8V) DVDD18: 1.15~1.3V(Typ.1.2V) IOVDD: 1.7~3.0V(Typ.1.8V) |
| Power consumption | DC 5V, 200mA |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Support |
| Auto White Balance (AEB) | Support |
| Auto Gain Control (AGC) | Support |
| Storage temperature | 0~60℃ |
| Operating temperature | -20~80℃ |
