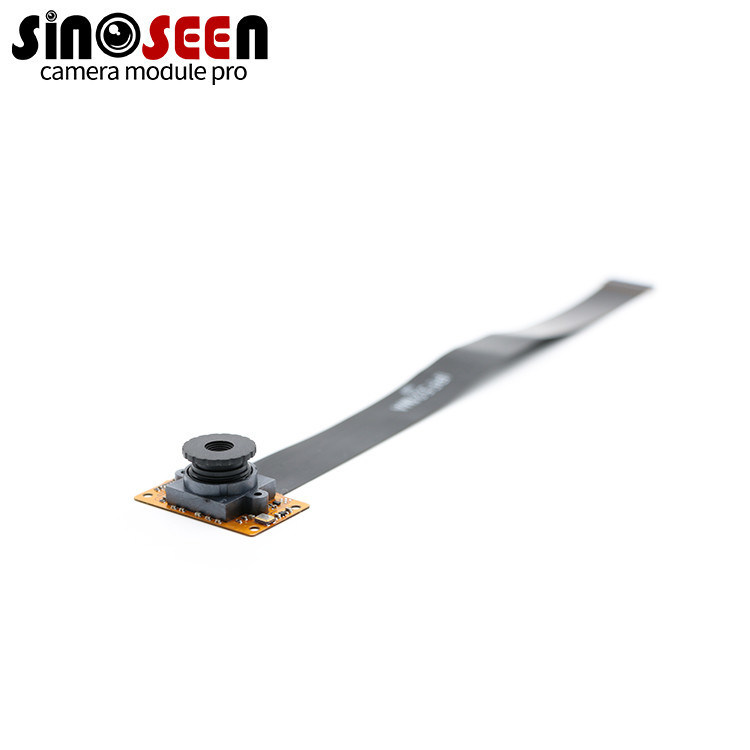

AR0521 5MP MIPI Camera Module | HDR CMOS Sensor for AI, Robotics, and Embedded Systems
Λεπτομέρειες:
| Τόπος καταγωγής: | Shenzhen, Κίνα |
| Μάρκα: | Sinoseen |
| Πιστοποίηση: | RoHS |
| Αριθμό μοντέλου: | SNS51734-V1.0 |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 3 |
|---|---|
| Τιμή: | 10-100USD、negotiable |
| Συσκευασία λεπτομέρειες: | Δίσκο+αντι-στατική τσάντα στο κουτί χαρτοκιβωτίων |
| Χρόνος παράδοσης: | 2-3 εβδομάδες |
| Όροι πληρωμής: | T/t |
| Δυνατότητα προσφοράς: | 500000 κομμάτια/μήνα |
|
Λεπτομερής ενημέρωση |
|||
| Τύπος: | 5mp ενότητα καμερών | Αισθητήρας: | 1/5 ίντσα |
|---|---|---|---|
| Ψήφισμα: | 5MP 2592 (Χ) Χ 1944 (Β) | Διαστάσεις: | (εξατομικεύσιμος) |
| FOV φακών: | 80° (προαιρετικός) | Τύπος εστίασης: | Σταθερή εστίαση |
| Διασυνδέομαι: | Μονάδα κάμερας MIPI | Χαρακτηριστικό: | Υψηλής ευκρίνειας |
| Επισημαίνω: | 5MP MIPI camera module,HDR CMOS sensor camera,MIPI camera for robotics |
||
Περιγραφή προϊόντων
The AR0521 5MP MIPI camera module delivers high-detail imaging with 2592*1944 resolution and HDR support for clear images under varying lighting conditions. Ideal for AI vision, robotics, and embedded projects requiring precise imaging.
The module features adjustable settings including exposure, brightness, contrast, and white balance for optimized image quality. Its MIPI interface ensures fast and stable connection to embedded boards and single-board computers.
Designed with a fixed-focus M12 lens mount, 80° DFOV, and low power consumption, it provides reliable, long-term performance across multiple platforms including Windows, Linux, macOS, and Android.
- 2592*1944 resolution for high-detail imaging
- HDR sensor captures a wide range of light intensities
- MIPI interface for embedded and SBC integration
- Adjustable exposure, brightness, contrast, white balance
- Fixed-focus M12 lens mount, 80° DFOV
| Model No | SNS51734-V1.0 |
|---|---|
| Sensor | 1/5'' inch |
| Pixel | 5 Mega Pixel |
| Most effective pixels | 2592(H) * 1944(V) |
| Pixel Size | 1.2µm * 1.2µm |
| Shutter Type | Electronic rolling shutter |
| Focus type | Fixed focus |
| S/N ratio | 36dB |
| Dynamic range | 72 dB @ 8x gain |
| Sensitivity | 690mV / lux-sec |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
| Lens | TTL: 23.89MM Lens Size: 1/3 inch DFOV: 80° Thread Size: M12*P0.5 |
| Audio frequency | Optional |
| Power supply | mipi |
| Power consumption | DC 5V, 200mW |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Support |
| Auto White Balance (AEB) | Support |
| Auto Gain Control (AGC) | Support |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| USB cable length | Default |
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
