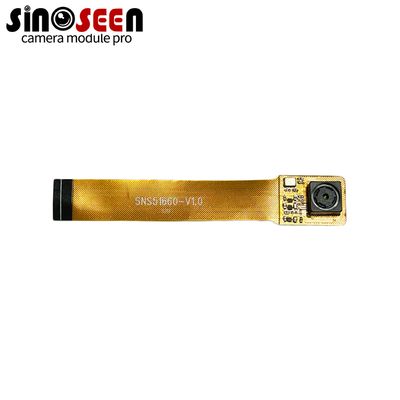

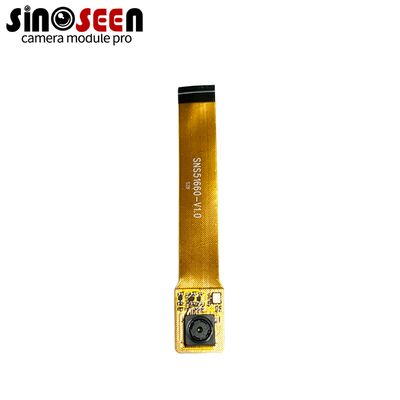

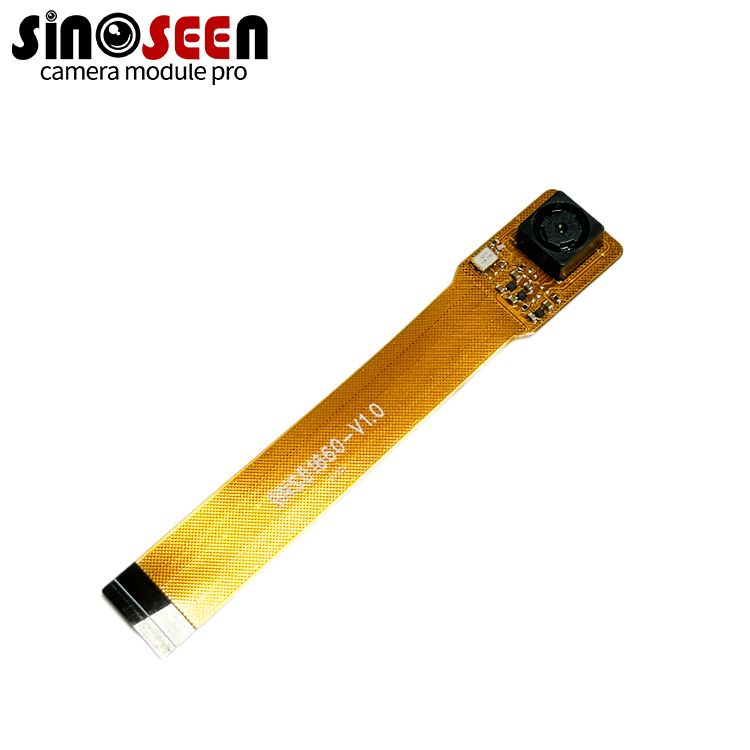

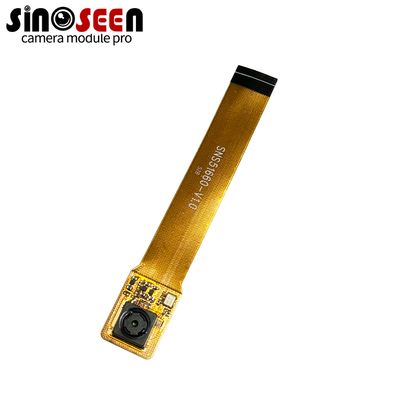

5MP OV5647 Raspberry Pi Camera Module with OmniBSI Technology
Λεπτομέρειες:
| Τόπος καταγωγής: | Κίνα |
| Μάρκα: | Sinoseen |
| Πιστοποίηση: | RoHS、ISO9001、CE |
| Αριθμό μοντέλου: | XLS51660-V1.0 |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 5 |
|---|---|
| Τιμή: | 10-100USD or negotiable |
| Συσκευασία λεπτομέρειες: | Δίσκο+αντι-στατική τσάντα στο κουτί χαρτοκιβωτίων |
| Χρόνος παράδοσης: | 2-3 εβδομάδες |
| Όροι πληρωμής: | T/t |
| Δυνατότητα προσφοράς: | 500000 κομμάτια/μήνα |
|
Λεπτομερής ενημέρωση |
|||
| Τύπος:: | Ενότητα καμερών σμέουρων pi | Αισθητήρας: | OV5647 |
|---|---|---|---|
| Ψήφισμα: | 1920*1080 | Διαστάσεις: | 38mmx38mm (συμβατό με 32mmx32mm) |
| Επισημαίνω: | 5MP Raspberry Pi camera module,OV5647 camera module with OmniBSI,Raspberry Pi camera with warranty |
||
Περιγραφή προϊόντων
| Attribute | Value |
|---|---|
| Type | Raspberry PI Camera Module |
| Sensor | OV5647 |
| Resolution | 1920×1080 |
| Dimensions | 38mm×38mm (compatible with 32mm×32mm) |
| Highlights | Raspberry PI Camera Module, Machine Vision OV5647 Camera Module |
The OV5647 camera module is purpose-built for Raspberry Pi applications, featuring OmniVision's 1/4-inch 5-megapixel OV5647 sensor. With OmniBSI™ technology, it delivers high sensitivity, low noise, and minimal crosstalk for exceptional imaging quality.
The module supports resolutions up to QSXGA (2592×1944) and full HD 1080p output, making it ideal for embedded vision and digital camera projects.
- Raspberry Pi compatibility for seamless integration
- 5MP resolution with 2592×1944 image output
- OmniBSI™ pixel technology for high sensitivity and reduced noise
- Multiple formats: 8-/10-bit raw RGB output
- Automatic functions: AEC, AGC, AWB for simplified operation
- Supports LED/flash strobe, subsampling, and frame synchronization
We offer customized design services, including lens options, PCB layouts, firmware optimization, and interface adjustments to meet project-specific requirements.
Sinoseen is a leading provider of professional camera modules for industries worldwide. With advanced R&D and manufacturing capabilities, we deliver high-quality, reliable, and customizable imaging solutions.
