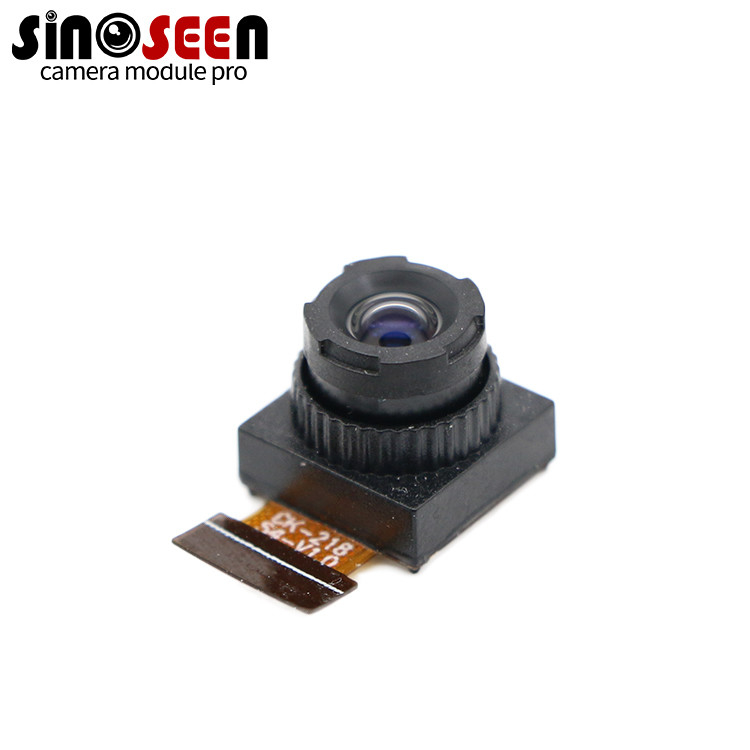

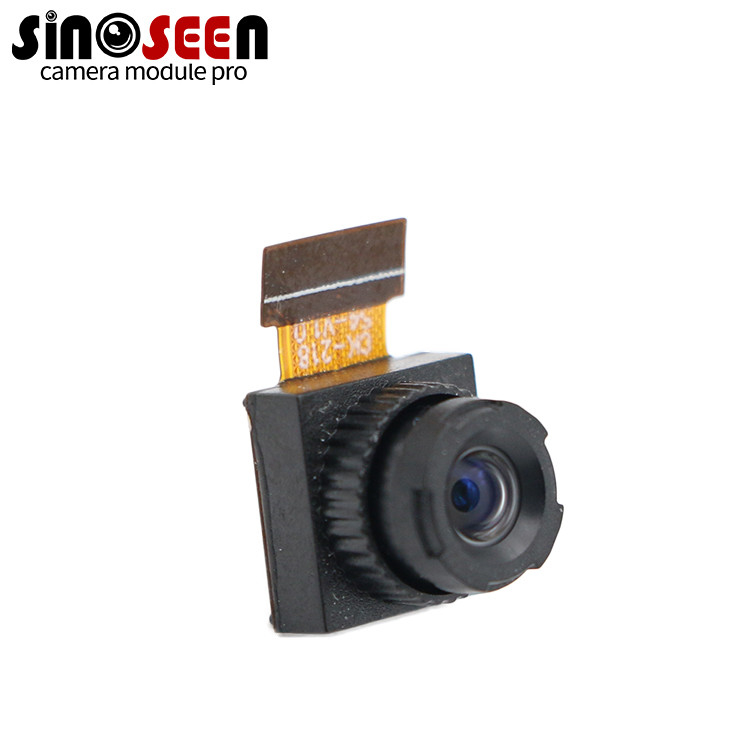

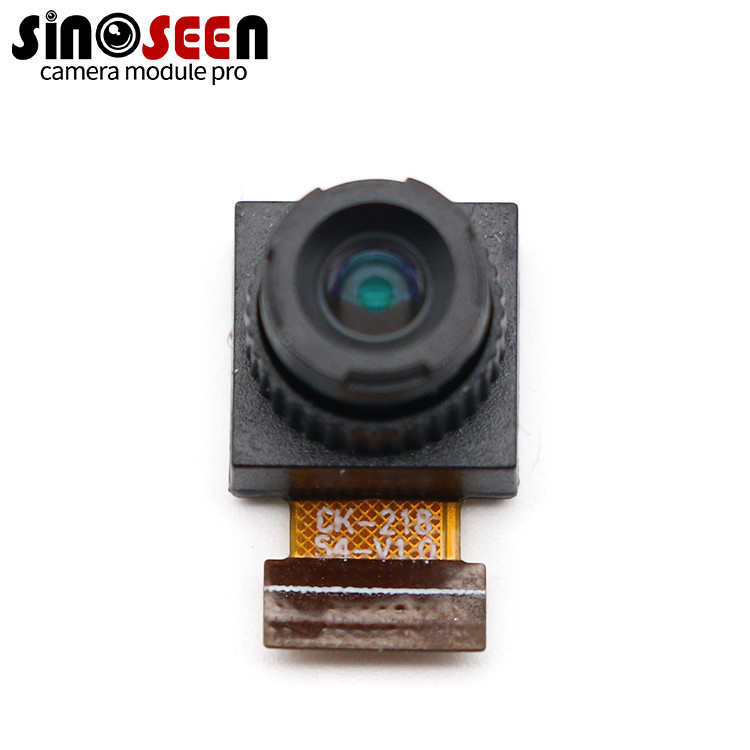

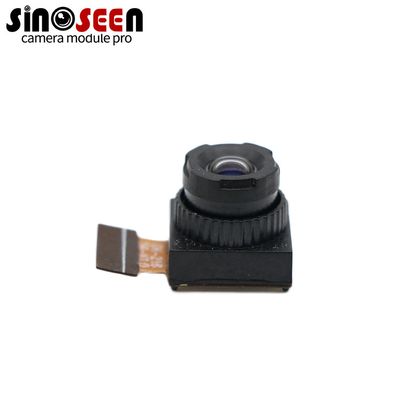

2MP Global Shutter MIPI Camera Module OV2312 60FPS
Λεπτομέρειες:
| Τόπος καταγωγής: | Σενζέν, Κίνα |
| Μάρκα: | Sinoseen |
| Πιστοποίηση: | RoHS |
| Αριθμό μοντέλου: | CK-21854-V1.0 |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 3 |
|---|---|
| Τιμή: | διαπραγματεύσιμα |
| Συσκευασία λεπτομέρειες: | Τραπέζι+Αντιστατική σακούλα σε κουτί από χαρτόνι |
| Χρόνος παράδοσης: | 2-3 εβδομάδες |
| Όροι πληρωμής: | Τ/Τ |
| Δυνατότητα προσφοράς: | 500000 κομμάτια/μήνας |
|
Λεπτομερής ενημέρωση |
|||
| Τύπος: | ενότητα καμερών | Αισθητήρας: | 1/5' OV2312 |
|---|---|---|---|
| Ανάλυση: | 2MP 1600*1300 | Διαστάσεις: | Προσαρμόσιμη |
| Ποσοστό καρέ: | 60FPS | FOV φακών: | 68° (προαιρετικό) |
| Διασύνδεση: | MIPI | Χαρακτηριστικό: | Κλειδί Globar |
| Επισημαίνω: | 2MP MIPI camera module,Global shutter camera module,OV2312 60FPS camera |
||
Περιγραφή προϊόντων
| Attribute | Value |
|---|---|
| Type | Camera Module |
| Sensor | 1/5' OV2312 |
| Resolution | 2MP 1600*1300 |
| Dimensions | Customizable |
| Frame Rate | 60FPS |
| Lens FOV | 68°(optional) |
| Interface | MIPI |
| Feature | Globar shutter |
Engineered with the OV2312 sensor, this 2MP MIPI camera module delivers exceptional imaging clarity and speed in a compact footprint. Supporting a high frame rate of 60fps and global shutter capture, it is optimized for advanced embedded vision systems. Its RGB-IR sensor enhances detection in both standard and infrared spectrums.
- Crisp 1600×1300 imaging with 2MP resolution
- Real-time 60fps frame rate ideal for AI vision algorithms
- Global shutter reduces rolling effects in fast-moving scenes
- Infrared + visible light support for all-day performance
- Lightweight and space-efficient design
- Seamless integration with MIPI-based platforms
- Smart cockpit solutions
- Gesture recognition systems
- Drones and automation devices
- Surveillance with AI video analytics
| Module | CK-21854-V1.0 |
| Sensor | OV2312 CMOS |
| Pixel | 2MP |
| Most effective pixels | 1600*1300 |
| Pixel Size | 3um*3um |
| Image area | 4857.7um*3955.9um |
| Frame rate | 30fps |
| Shutter Type | Globar shutter |
| Focus type | Fixed focus |
| S/N ratio | 37.4 dB |
| Dynamic range | 68 dB |
| Power supply | analog:2.8v core:1.2v I/O:1.8v |
| Output interface | 2-lane MIPI serial output and DVP parallel output |
| Output formats | 10-bit RGB-IR RAW |
| lens size | 1/2.9' |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
From hardware-level modifications to optical and sensor tuning, we offer full-scale customization services. Contact us to adapt this camera module to your industrial, automotive, or consumer-grade product.
Sinoseen Technology delivers end-to-end camera module solutions to customers worldwide. With in-house R&D, manufacturing, and quality assurance, we empower businesses to innovate across automotive, industrial, medical, and consumer electronics sectors.
Explore camera module solutions with expert support. Connect with us:
