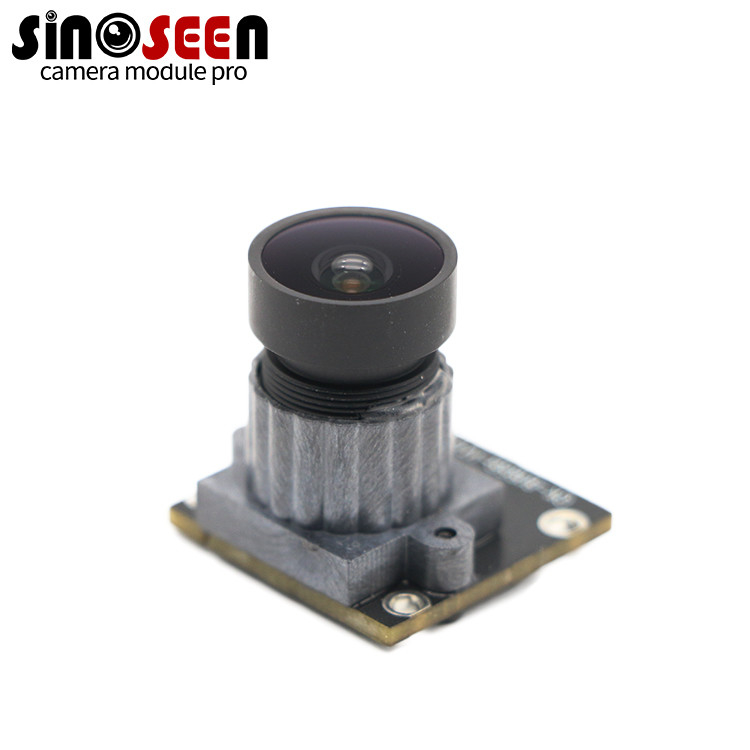

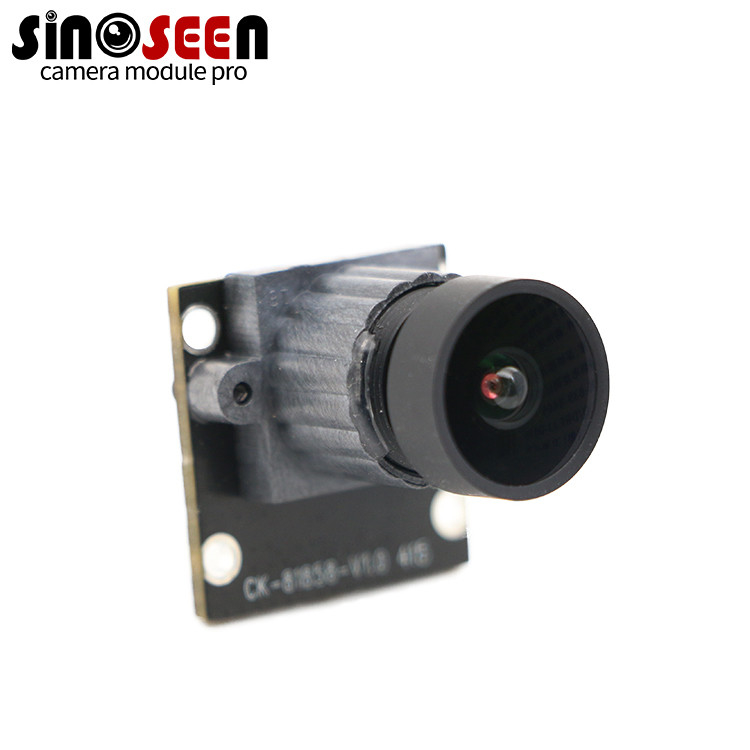

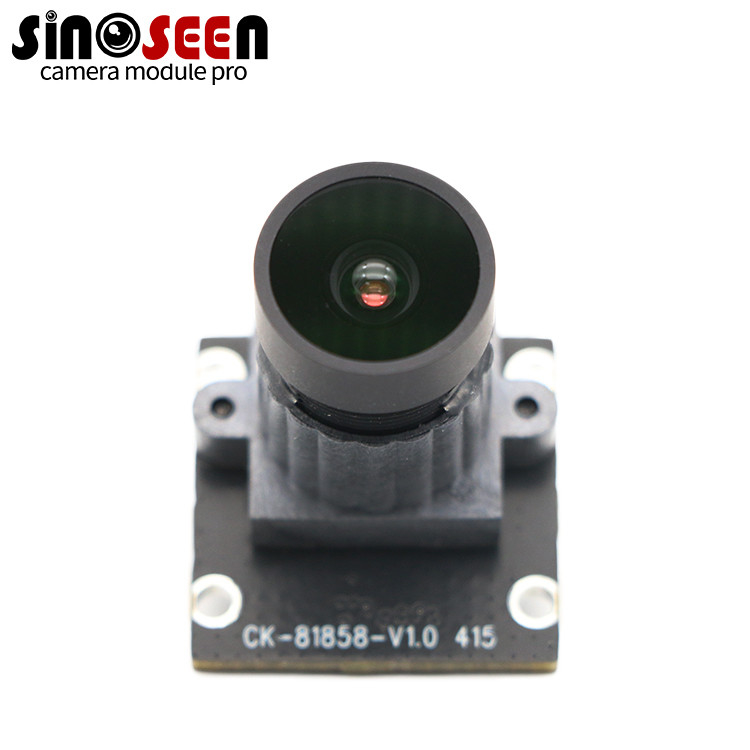

8MP 4K MIPI Camera Module with Sony IMX415 Sensor
Λεπτομέρειες:
| Τόπος καταγωγής: | Σενζέν, Κίνα |
| Μάρκα: | Sinoseen |
| Πιστοποίηση: | RoHS |
| Αριθμό μοντέλου: | CK-81858-V1.0 |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 3 |
|---|---|
| Τιμή: | διαπραγματεύσιμα |
| Συσκευασία λεπτομέρειες: | Τραπέζι+Αντιστατική σακούλα σε κουτί από χαρτόνι |
| Χρόνος παράδοσης: | 2-3 εβδομάδες |
| Όροι πληρωμής: | Τ/Τ |
| Δυνατότητα προσφοράς: | 500000 κομμάτια/μήνας |
|
Λεπτομερής ενημέρωση |
|||
| Τύπος: | ενότητα καμερών | Αισθητήρας: | IMX415 1/2.8 ίντσες |
|---|---|---|---|
| Ανάλυση: | 8mp 3840*2160 | Διαστάσεις: | Προσαρμόσιμη |
| Ποσοστό καρέ: | 30fps | FOV φακών: | 128° (προαιρετικό) |
| Διασύνδεση: | MIPI | Χαρακτηριστικό: | 4K UHD |
| Επισημαίνω: | 8MP MIPI camera module,4K MIPI camera with IMX415,Sony IMX415 camera module |
||
Περιγραφή προϊόντων
| Attribute | Value |
|---|---|
| Type | Camera Module |
| Sensor | IMX415 1/2.8 inch |
| Resolution | 8MP 3840*2160 |
| Dimensions | Customizable |
| Frame Rate | 30FPS |
| Lens FOV | 128°(optional) |
| Interface | MIPI |
| Feature | 4K UHD |
This 8MP 3840×2160 MIPI camera module features Sony's IMX415 CMOS sensor, delivering exceptional image quality and 4K video at 30fps. It's ideal for advanced embedded vision systems that demand compact design, high resolution, and efficient performance.
With a pixel size of just 1.45μm, the module provides excellent clarity even in low-light scenarios. The MIPI interface allows seamless data transfer and easy integration with a wide range of processors, making it perfect for robotics, automotive electronics, and industrial automation.
- High-resolution 8MP sensor (3840x2160)
- 30fps 4K video recording
- Compact and fixed-focus design
- MIPI CSI-2 interface for high-speed data
- Broad OS compatibility including Linux, Windows, Android, and macOS
| Module | CK-81858-V1.0 |
|---|---|
| Sensor | IMX415 CMOS |
| Pixel | 8MP |
| Most effective pixels | 3840*2160 |
| Pixel Size | 1.45um*1.45um |
| Frame rate | 30fps |
| Focus type | Fixed focus |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
We offer OEM/ODM services including hardware customization (lens, PCB, housing) and software tuning. Whether for mass production or rapid prototyping, our team supports full product development based on your needs.
Sinoseen is a trusted manufacturer specializing in camera modules since 2016. We provide high-quality, competitively priced imaging solutions for industries like security, automotive, machine vision, and smart devices. Learn more at www.sinoseen.com.
Have a project in mind? Email us at andy@sinoseen.com or submit your requirements directly through our contact form. We'll respond within 24 hours.
