4MP Raspberry Pi Camera Module with Intelligent Face Recognition and H.265 Encoding for Multi-Platform Compatibility
Λεπτομέρειες:
| Τόπος καταγωγής: | Κίνα |
| Μάρκα: | Sinoseen |
| Πιστοποίηση: | RoHS、ISO9001、CE |
| Αριθμό μοντέλου: | SNS21853-V1.0 |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 5 |
|---|---|
| Τιμή: | διαπραγματεύσιμα |
| Συσκευασία λεπτομέρειες: | Τραπέζι+Αντιστατική σακούλα σε κουτί από χαρτόνι |
| Χρόνος παράδοσης: | 2-3week |
| Όροι πληρωμής: | Τ/Τ |
| Δυνατότητα προσφοράς: | 500000 κομμάτια/μήνας |
|
Λεπτομερής ενημέρωση |
|||
| Τύπος:: | Ενότητα καμερών σμέουρων pi | Αισθητήρας:: | IMX482 |
|---|---|---|---|
| Ψήφισμα:: | 640H x 488V | Μέγεθος:: | 38mmx38mm (συμβατός με 32mmx32mm) |
| Επισημαίνω: | Multi-Platform Raspberry Pi Camera Module,H.265 Encoding Raspberry Pi Camera Module,4MP Raspberry Pi Camera Module |
||
Περιγραφή προϊόντων

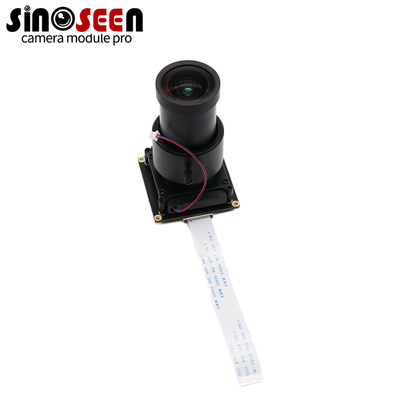

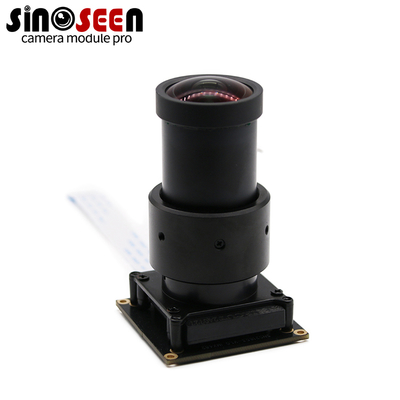

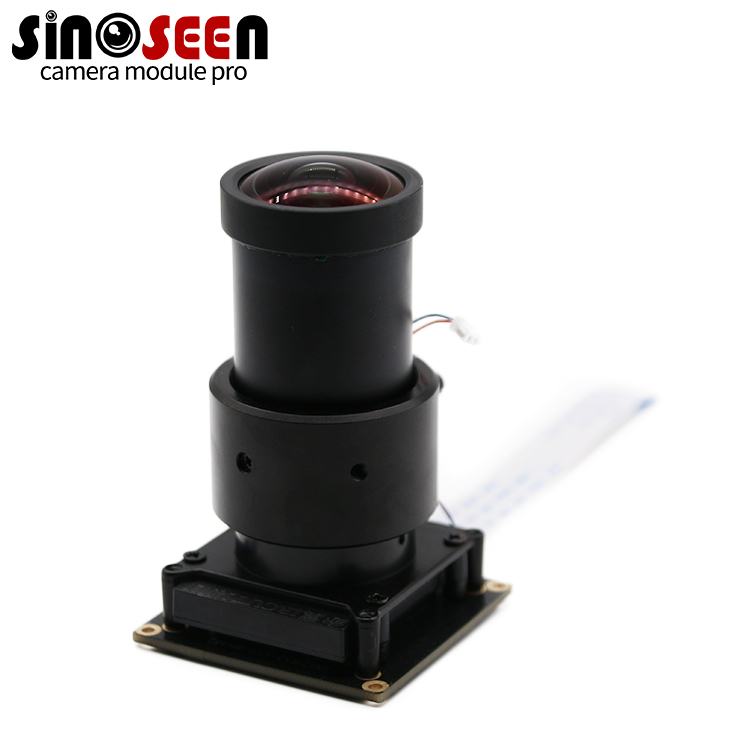

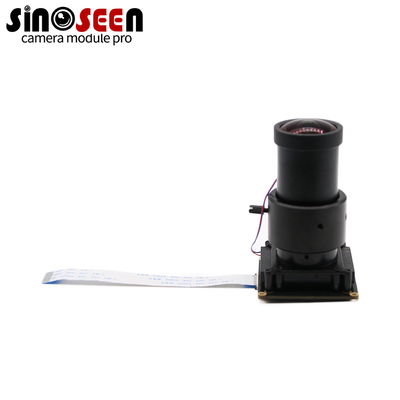

The Sinoseen SNS-21853-V1.0 camera module is equipped with a 4-megapixel 1/1.8-inch progressive scan CMOS sensor IMX482 and a HiSilicon DSP (Hi3516DV300) to provide excellent image quality. It features 120dB wide dynamic range (WDR) and 3D digital noise reduction to ensure clear and detailed images in all lighting conditions.
Designed for professional applications, the module supports intelligent face detection, tracking and capture, can detect up to 32 faces per frame, and provides multiple capture modes and adjustable face exposure. Combined with H.265+ compression technology, it supports ROI (region of interest) enhanced encoding to effectively save storage space and bandwidth. The module is compatible with 38mmx38mm and 32mmx32mm sizes for easy integration. It also supports day and night switching, intelligent control, and is compatible with iPhone, Android phones and P2P cloud technology, making it an ideal choice for high-security environments and intelligent face recognition applications.
Product highlights
- 4MP high-definition imaging: IMX482 sensor, rich image details.
- 120dB ultra-wide dynamic range: optimize complex lighting, taking into account both light and dark details of the picture.
- Intelligent face recognition: supports detection, tracking and capture of up to 32 faces.
- H.265+ efficient encoding: ROI enhanced encoding, saving storage and bandwidth.
- Multi-platform compatibility: supports Raspberry Pi, iPhone, Android and P2P cloud technology.
| camera | |||||||
| Sensor Type | 1/1.8 inch progressive scan CMOS 4 megapixels SC4210 | ||||||
| HiSilicon Digital Signal Processor | Hi3516DV300 | ||||||
| Electronic shutter | 1/12s ~ 1/8000s | ||||||
| Minimum Illumination | Color 0.005lux F1.7; | ||||||
| B/W 0.001Lux F1.7; | |||||||
| Signal-to-Noise Ratio | ≥ 50dB (AGC off) | ||||||
| Day and night mode | Photosensitive detection/video detection/time detection | ||||||
| WDR | ≥ 120dB | ||||||
| 3DNR | 3DNR | ||||||
| Demobilization and reintegration program | 8Gb DDR | ||||||
| flash | 128Mb SPI NAND Flash | ||||||
| Compression Standards | |||||||
| Video compression standards | H.265 +/H.265/H.264/MJPEG | ||||||
| H.265 | Main outline | ||||||
| Video bitrate | 32 Kbps ~ 16Mbps | ||||||
| Audio compression format | G.711a/ G.711u/G.726 | ||||||
| image | |||||||
| Image Settings | Brightness, contrast, saturation, sharpness, AWB, AGC, AE, AIC, privacy mask; OSD | ||||||
| Maximum image size | 2560 × 1440 | ||||||
| Video resolution | Mainstream | 1440P(2560 × 1440)/1920 × 1080 | |||||
| Child | D1(704 × 576)/VGA(640 × 480)/640 × 352/QVGA(320 × 240) | ||||||
| Video frame rate | 50Hz: 25fps | ||||||
| 60Hz: 30fps | |||||||
| Character Overlay | support | ||||||
| Smart Features | |||||||
| Smart Coding | Supports low bit rate, low latency, ROI enhancement encoding of the region of interest, and supports 4 ROI areas | ||||||
| Intelligent Detection | Supports occlusion detection, out-of-focus detection, brightness detection, color detection, sound detection, remaining detection, motion detection, virtual cordon, and area intrusion | ||||||
| Intelligent Control | Supports intelligent control of alarm on, alarm off, fault clearing, and intelligent noise reduction | ||||||
